Drought Survivability Study Follow up

Just how much can we cut back on watering plants and still have a great looking landscape?  An experiment conducted summer of 2015 in San Antonio seeks to answer that question.  Last spring I wrote about the drought survivability study by Texas A&M Institute of Renewable Natural Resources in San Antonio to test popular landscape plants under various irrigation conditions over the summer.  When the test ended this past fall I went down to check out how some of my favorite plants had fared.


The project site is off the beaten track to say the least.  It's down that road a fair piece.




The welcoming committee was out.  Nice to know I was expected.





This house near the drought simulator features stucco over stone and seems to be quite old.






First, a quick recap and you can also read more here.  The test was designed to demonstrate plant tolerance for various levels of watering to determine how far water usage can be reduced without unacceptable loss of plant health.   Inputs from nurseries, landscapers, and the three cities involved in the study were used to select 100 different plants for the test, generally according to local popularity among consumers.  Four irrigation zones were established within the simulator.  After an initial watering in period to get all plants established, the plants in the different zones received varying amounts of hydration, including one section which received no water.  As summer approached, each plot received different amounts of water based on percentage of "evapotranspiration."

Below is an overview of two of the four plots after a summer's worth of growth and two more are beyond the rolling roof.  This is a bit of a "dry" subject for a post since the gardens here are meant for research and not prime examples of local landscaping design.  The two plots shown below received the least amount of water.






The shed roof moves automatically to cover the low water planted areas during rain events and control the amount of water received.  With limited rain the roof didn't move much at all during the test phase.



What looks like a donation can for the A&M folks is actually the rain sensor which closes the roof in the background over the plants when it rains.


This is the newer sensor.


Just to prove it was a very dry summer.


Drip emitters were used for the plants receiving water.


A research report based on technical evaluation is in the works, but I discovered some useful information by observation.
The plot layout below shows the plant locations for a single quadrant, so all four quadrants were exactly the same.  Each species had four plants per quadrant shown in the guide for a total of 1600 plants in the study.  With this handy plant list for reference lets see what happened over the long hot summer.


I'll take each of the four sections in order from driest to wettest and use my own decidedly non-scientific terminology for this post.

SECTION I: NO WATER ZONE


My primary interest in returning to the project was to see which plants survived without any water at all.  With another water rate increase for 2016, it's an incentive to save even more water in the garden.

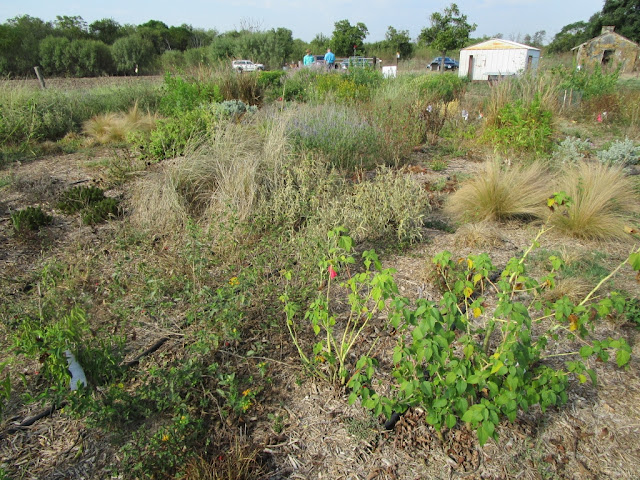

Looking first at the No Water Zone, we see the plants have generally survived, probably better than expected.  Remember, this zone received no rain and no irrigation.  This is pretty much how my garden would have looked with no watering in the summer of 2015 and I'm suprised at how good some plants looked.  For instance, Chile Pequin in the foreground is still green, airy Pride of Barbados (center) looks great and probably bloomed shortly after this visit.  To the right and behind Pride of Barbados is Turk's Cap looking good too.


Purple fountaingrass (back center) looked outstanding.  Most ornamental grasses did quite well in this and all sections of the study.


Those four yellow plants (back right) are were boxwood.  Blue Grama Grass in the center looks pretty sad.  Blackfoot Daisy, a reliable drought-tolerant native is alive and blooming.


Silvery Cenizo or Texas Sage doing well, not a surprise.  The green plant to the right is Esperanza.

Turk's Cap proves it is a survivor yet again.  Happy in deep shade or sun, water or not, Turk's Cap is a great garden plant.  It's been hot out here, no trees and this part of town is consistently a few degrees warmer than where I live.


Dutch Iris in the foreground are singed by summer heat and sun.  Pale pink Guara to the left is blooming away with no water.  Viburnum didn't make it but Salvia 'Mystic Spires' looks great considering no water all summer.


  Henry Duelberg Salvia, Rock Rose, and especially Guara are blooming.  I've made a note to plant Guara now that the deer are not a factor in the back garden.  Overall the No Water Zone looks stunted but most plants survived.



SECTION II: LOW WATER ZONE

Next I headed across the central pathway to the area which received a little more water or 20% of evapotranspiration.  For contrast, the No Water Zone is on the right and the Low Water Zone is on the left, where plants received minimal irrigation.



The low-water section looked surprisingly good considering our especially hot summer weather. I'd be quite happy with my garden plants looking this good at summer's end.  But of course not every plant did well.




Quite a contrast how well plants do with just a little irrigation.  Sabal Palms in the foreground look good.  Burford Holly looks crispy brown.


Guara receiving some water looked about the same as the one receiving no water.  Dutch Iris are much improved with limited watering.


Coneflowers bloomed and have gone to seed so this looks pretty typical.  Rosemary looks better than mine at home.


Gulf Muhly grasses look great with limited water.  The red flowers are Knockout Roses.  Belinda's Dream Rose was also in the study and did well though I don't have a photo.

Lindheimer's Muhly (center left) and Mexican Feather Grass (right) all looking good in the limited water section.  Gray Santolina is very happy back along the path.


SECTION III: MEDIUM WATER ZONE

The section receiving 40% of evapotranspiration looked good but only slightly better than the 20% section.  Of course, the key to the study is how individual plants fared with varying amounts of water.  Pink Rock Rose, Blue Plumbago, and others are blooming nicely.


Dry and heat-loving esperanza (yellow flowers) looks even better with a little water.


Fountain Grasses are standouts here.


SECTION IV: LOTS OF WATER ZONE

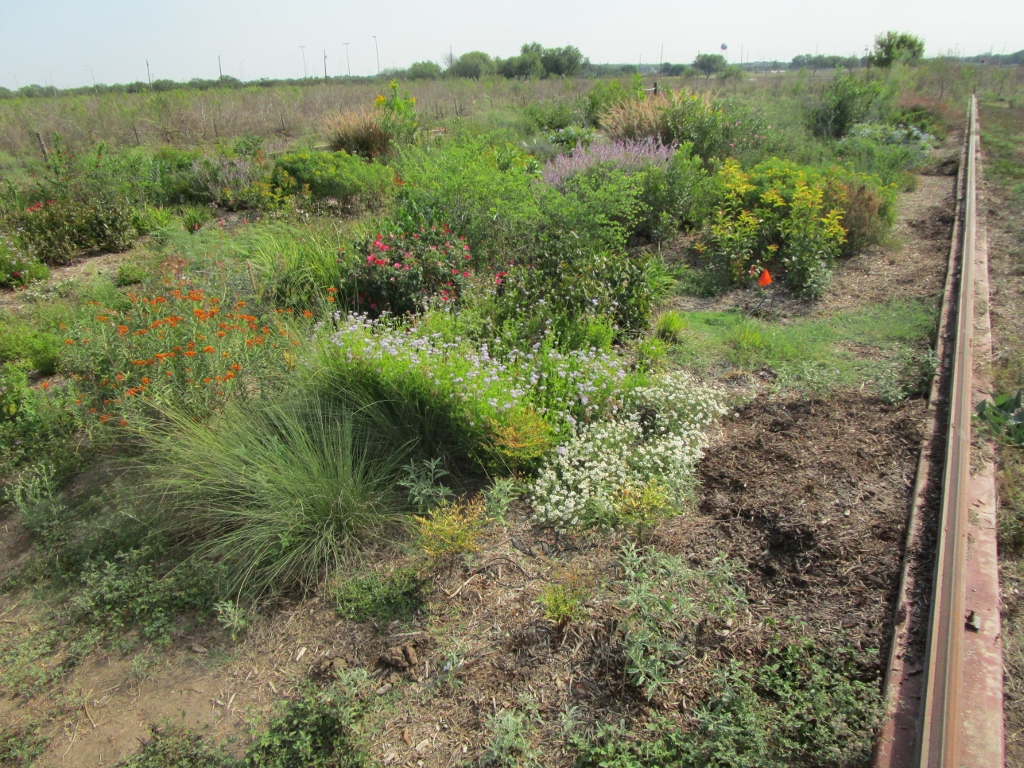

Of course the 60% of evapotranspiration section looked the best although there were a few surprises. Tropical Milkweed, Gulf Muhly, and Martha Gonzales roses all doing beautifully.  The milkweed was even hosting Monarch butterflies.  Gregg's Mistflower doing great on the right, it performs well with or without irrigation.


The A&M team inspecting the irrigation system.


It all looks good, I'd be interested to know just how much water was applied here.


One of the surprises was how good the Blackfoot Daisy (low-growing white flowers) looks with irrigation since it generally does not like a lot of water.


It's a common saying among local gardeners that the "fastest way to kill Blackfoot Daisy is to water it."  Yet here it is looking great in the maximum water section.  One caveat would be that the soil here is sandy compared to my rocky clay so drainage is the key.


Bat-faced cuphea, one of my favorites, looks great with all that irrigation while the Guara (pink flowers, far right) which survived with no water looks good, but not that much better than in the other sections.


Yellow Flowering Senna, bright red Firebush and Mexican Bush Sage all did well with irrigation though one of the Rosemary plants looks similar to several of mine which succumbed to too much spring rain.


This post is simply an overview of my observations from that day.  I'd also enjoy seeing the details on just how much irrigation was delivered to compensate for evapotranspiration.  I took tons of photos which will be useful references when deciding what to plant in the future.  The second phase of the study irrigated the plants which received the least water to see how they responded to fall rains.  I'm looking forward to the formal Texas A&M results of the study detailing each plant and learning more about just how much (or how little) water my plants need to look good in the garden.
